Double Girder Gantry Cranes
Double Girder Gantry Crane
Double Girder Gantry Cranes provide high-capacity and reliable lifting solutions for steel plants, construction projects, manufacturing facilities, and outdoor material handling operations.
Specifications
- Type
- Gantry Crane
- Girder
- Double Girder
- Use
- Material lifting and handling equipment
- Capacity & Span
- Customized
Double Girder Gantry Crane
Heavy-Duty Lifting Solution for Industrial Material Handling

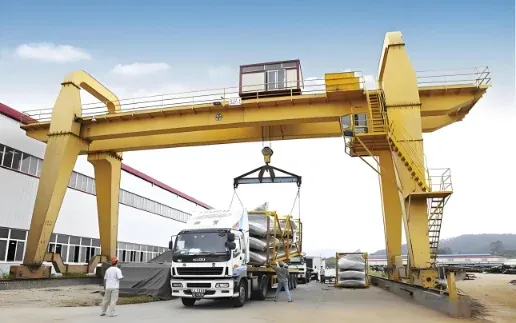

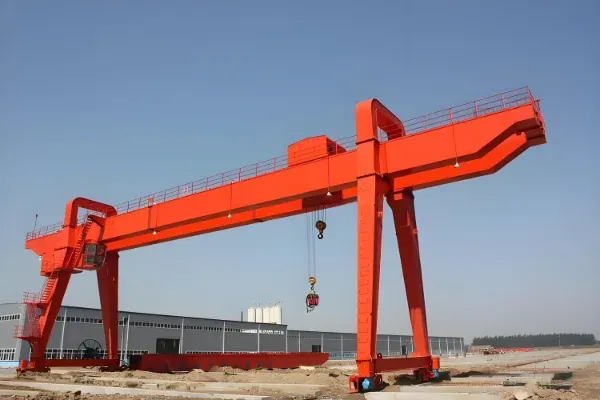

Double Girder Gantry Cranes are designed for heavy-duty lifting operations in steel plants, precast yards, manufacturing facilities, construction sites, and outdoor storage areas. With a robust double girder structure, these cranes provide higher lifting capacity, greater lifting height, and better operational stability than single girder gantry cranes.
The crane consists of two main girders, supporting legs, traveling mechanism, trolley, hoisting system, and electrical control system. It is widely used for handling heavy loads and large components in demanding industrial environments.
YiCheng Crane supplies customized double girder gantry cranes with lifting capacities ranging from 5 tons to 200 tons or more, according to project requirements.
Main Features
• Heavy-duty double girder structure
• Higher lifting capacity and lifting height
• Stable and reliable operation
• Suitable for indoor and outdoor applications
• Excellent performance for continuous operation
• Long service life and low maintenance cost
• Customized span and lifting height available
• Compatible with wire rope hoists and winch trolleys
Technical Specifications
Item | Specification |
|---|---|
Lifting Capacity | 5 Ton – 200 Ton |
Span | 10 m – 40 m |
Lifting Height | 6 m – 30 m |
Working Duty | A5 – A7 |
Lifting Speed | Customized |
Traveling Speed | Customized |
Power Supply | 380V / 415V / 50Hz / 3 Phase |
Control Method | Pendant Control / Wireless Remote Control / Cabin Control |
All specifications can be customized according to project requirements.
Applications
Double girder gantry cranes are widely used in heavy industrial environments.
Steel Fabrication Plants
Handling steel structures, steel coils, and heavy fabricated components.
Precast Concrete Yards
Lifting concrete beams, molds, and precast products.
Machinery Manufacturing
Moving large equipment and heavy machine parts during production and assembly.
Construction Projects
Supporting infrastructure, bridge construction, and industrial installation projects.
Outdoor Storage Areas
Loading and unloading heavy materials in open yards and logistics centers.
Advantages of Double Girder Gantry Crane
Higher Lifting Capacity
The double girder design provides greater load-bearing capability for heavy-duty applications.
Larger Working Range
Suitable for larger spans and higher lifting heights compared with single girder cranes.
Improved Stability
The rigid structure ensures safe and stable operation when handling oversized loads.
Flexible Customization
Capacity, span, lifting height, control system, and working duty can be customized.
Reliable Industrial Performance
Designed for continuous operation in demanding working conditions.
Optional Configurations
• Electric Wire Rope Hoist
• Open Winch Trolley
• Variable Frequency Drive (VFD)
• Cabin Control
• Wireless Remote Control
• Load Display System
• Anti-Collision Device
• Overload Protection System
• Rail Clamps and Wind Protection Device
• Outdoor Rain Cover
Why Choose YiCheng Crane
✔ Professional Gantry Crane Manufacturer
✔ Customized Engineering Design
✔ Competitive Factory Pricing
✔ High-Quality Steel Structure
✔ Fast Delivery Time
✔ Technical Support and Installation Guidance
✔ Export Experience Across Asia and Africa
How to Select the Right Double Girder Gantry Crane
To provide the most suitable solution, please send us the following information:
• Required lifting capacity
• Span of the crane
• Lifting height
• Indoor or outdoor application
• Working frequency
• Power supply information
Our engineering team will recommend the most efficient and cost-effective crane solution for your project.
Request a Quote
Looking for a reliable Double Girder Gantry Crane manufacturer?
Contact YiCheng Crane today for customized lifting solutions, technical consultation, and competitive pricing. Our team will provide a professional quotation within 24 hours.
