Portable Gantry Crane
Portable Gantry Crane
Wanli Crane supplies portable gantry cranes for workshops, warehouses and maintenance operations. Request a customized lifting solution for your project.
Specifications
- Type
- Portable Gantry Crane
- Use
- Material lifting and handling equipment
- Capacity & Span
- Customized
Portable Gantry Crane
Flexible Portable Gantry Crane for Workshops, Warehouses and Maintenance Areas
Move lifting capacity to the work area instead of building a permanent crane runway. Wanli portable gantry cranes are designed for flexible material handling, equipment installation and maintenance where mobility, compact size and fast deployment matter.
Quick highlights
- Mobile lifting without a permanent overhead crane structure
- Adjustable or fixed-height configurations available
- Suitable for workshops, warehouses and selected outdoor applications
- Compatible with electric chain hoists, wire rope hoists or manual hoists
- Capacity, span, lifting height and wheel configuration can be customized
Product overview

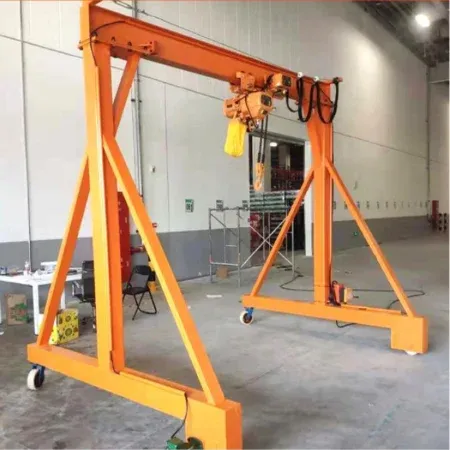

Wanli portable gantry cranes are compact lifting systems supported by two legs and a horizontal beam. The structure can be moved between work areas when unloaded, helping maintenance teams and production operators handle materials without installing a fixed runway system.
The crane can be supplied as a steel or aluminum structure, with adjustable or fixed height options according to the required lifting height, working environment and handling frequency. Our team can recommend a suitable configuration after reviewing your load, span, lifting height and application.
Key features
Easy movement between work areas
Swivel casters or wheels allow the unloaded crane to be repositioned for different lifting tasks. Wheel selection and braking arrangements should be matched to the floor condition and operating method.
Compact structure for flexible use
The portable design is suitable for areas where a permanent overhead crane system is unnecessary or cannot be installed.

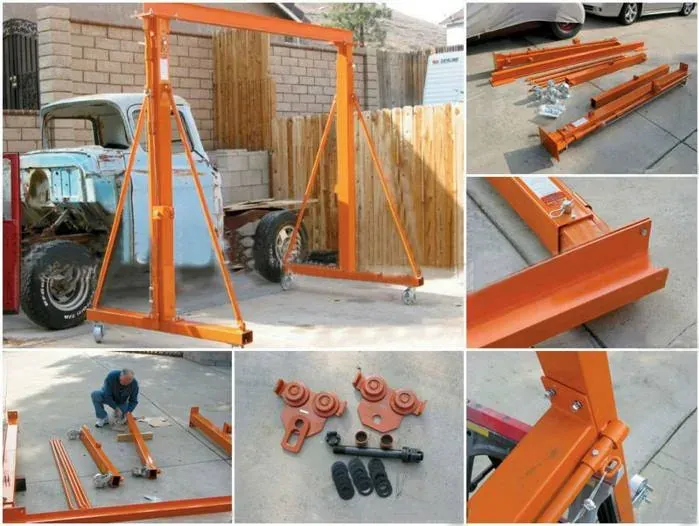

Adjustable configuration
Adjustable height and customized span options help the crane fit different workstations, equipment sizes and access conditions.
Multiple hoist choices
The crane can be configured with a manual chain hoist, electric chain hoist or wire rope hoist, subject to the required capacity, lifting height and duty conditions.
Designed around the application
The final configuration should be selected according to load type, lifting frequency, indoor or outdoor use, floor condition, available power and transport requirements.
Specifications
Item | Standard range / option |
|---|---|
Product type | Portable gantry crane |
Rated capacity | 0.5–5 t standard website range; customized options available |
Span | Approximately 2–10 m, subject to design confirmation |
Lifting height | Approximately 2–8 m, subject to design confirmation |
Structure | Steel or aluminum, depending on application |
Height | Fixed height or adjustable height |
Hoist | Manual chain hoist, electric chain hoist or wire rope hoist |
Movement | Manual push or application-specific traveling arrangement |
Control | Manual, pendant control or remote control depending on hoist selection |
Power supply | To be confirmed according to the destination country and hoist configuration |
Application | Workshop, warehouse, maintenance, installation and construction support |
How to Select the Right Portable Gantry Crane
Please provide the following information so we can recommend a suitable portable gantry crane:
- Required rated lifting capacity
- Required span or clear working width
- Required lifting height
- Hoist type and lifting speed
- Indoor or outdoor working environment
- Floor condition and whether the crane must be moved while loaded
- Power supply and destination country
- Any height, access, transport or installation restrictions
Applications
Workshop material handling
Support routine lifting and positioning of machinery, components and production materials.
Equipment installation and maintenance
Provide a temporary lifting solution for motors, pumps, molds, tooling and other equipment.
Warehouse loading and unloading
Handle selected loads in areas where a fixed overhead crane is not available.
Manufacturing plants
Move components between workstations and support flexible production layouts.
Portable Gantry Crane in Lifting Operation
Watch a portable gantry crane carrying out a practical lifting operation. The video shows how this flexible lifting equipment can support workshop handling and equipment movement.
Construction and site maintenance
Use a suitable portable configuration for lifting tasks at installation and maintenance locations.
Available configurations
- Steel portable gantry crane
- Aluminum portable gantry crane
- Adjustable-height portable gantry crane
- Fixed-height portable gantry crane

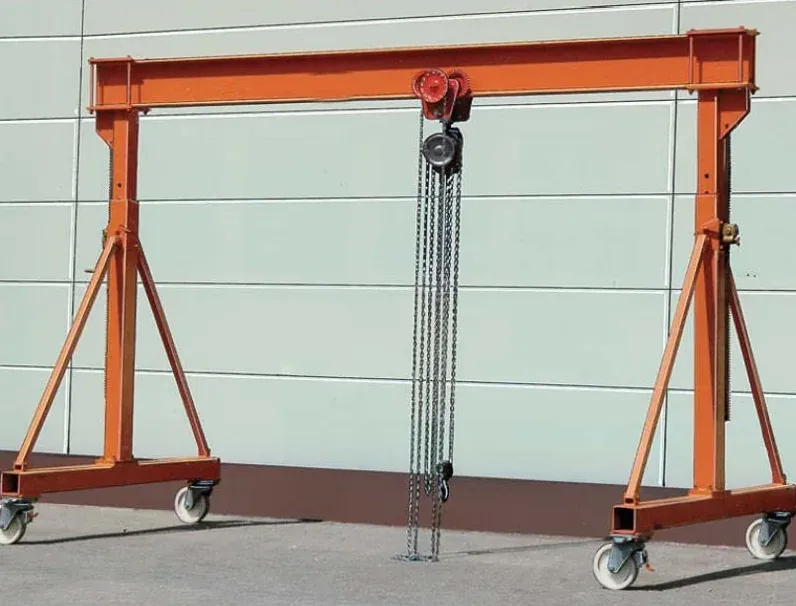

- Manual chain hoist configuration
- Electric chain hoist configuration
- Wire rope hoist configuration
Customization and engineering support
Every lifting application has different requirements. Wanli can review your working conditions and prepare a configuration based on the required capacity, span, lifting height, hoist type, movement method and power supply.
Before production, the main dimensions and operating requirements should be confirmed in the technical drawing. This helps reduce problems related to headroom, access width, floor condition, transportation and installation.
Packing and delivery
The packing method depends on the crane size, structure, hoist configuration and shipping method. Components can be prepared for export transportation, with the final packing and loading arrangement confirmed before shipment.
For a quotation, please tell us the destination country, required quantity and preferred delivery port if available.
FAQ
Can the portable gantry crane be customized?
Yes. Capacity, span, lifting height, structure, hoist type and other configuration details can be reviewed according to your application.
Can it be used outdoors?
Some configurations can be used outdoors, but the structure, wheel system, electrical protection and surface treatment must be selected for the actual environment. Please send the working conditions before ordering.
Can the crane move with a load?
This depends on the specific design and safety requirements. A standard portable gantry crane should generally be repositioned only under the operating conditions defined in the technical documentation. Please confirm this requirement before quotation.
Which hoist should I choose?
Manual chain hoists are suitable for occasional lifting. Electric chain hoists are suitable for more frequent lifting and improved operating efficiency. Wire rope hoists may be considered for higher lifting heights or different duty requirements.
What information is needed for a quotation?
Please provide the capacity, span, lifting height, application, working environment, hoist preference and destination country. A drawing or site photo is also helpful.
Final CTA
Need a Portable Gantry Crane for Your Lifting Task?
Send us your required capacity, span, lifting height and application. Wanli Crane will review your requirements and recommend a suitable configuration.
