Semi Gantry
Semi Gantry Crane
Semi Gantry Cranes are an economical lifting solution that combines the advantages of overhead cranes and gantry cranes, making them ideal for workshops, warehouses, and industrial facilities.
Specifications
- Type
- Semi Gantry Crane
- Girder
- Single Girder
- Use
- Material lifting and handling equipment
- Capacity & Span
- Customized
Semi Gantry Crane
Cost-Effective Lifting Solution for Workshops and Industrial Facilities

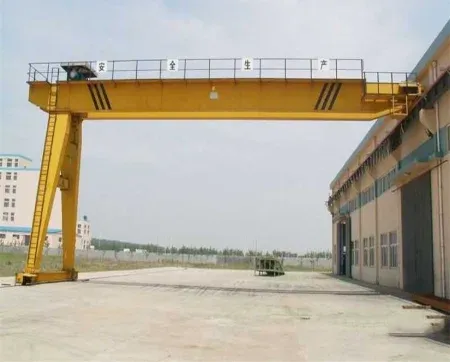

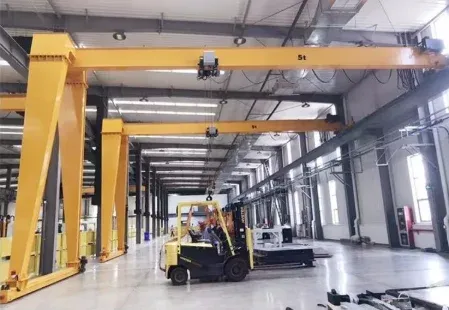

A Semi Gantry Crane combines the advantages of an overhead crane and a gantry crane. One side of the crane travels on a ground rail supported by a leg, while the other side runs on an elevated runway beam installed on the workshop structure.
This design makes the semi gantry crane an ideal solution for workshops where a full gantry crane is unnecessary or where an existing overhead crane runway can be utilized. It helps maximize available space while reducing installation and construction costs.
YiCheng Crane provides customized semi gantry cranes with lifting capacities from 1 ton to 32 tons, suitable for manufacturing plants, warehouses, fabrication workshops, and maintenance facilities.
Main Features
• Space-saving design
• Lower investment cost than a full gantry crane
• Suitable for existing workshop structures
• Smooth and reliable operation
• Easy installation and maintenance
• Flexible lifting solutions for indoor and outdoor use
• Available with electric wire rope hoists or electric chain hoists
• Customized span and lifting height available
Technical Specifications
Item | Specification |
|---|---|
Lifting Capacity | 1 Ton – 32 Ton |
Span | 5 m – 30 m |
Lifting Height | 3 m – 18 m |
Working Duty | A3 – A5 |
Lifting Speed | Customized |
Traveling Speed | Customized |
Power Supply | 380V / 415V / 50Hz / 3 Phase |
Control Method | Pendant Control / Wireless Remote Control |
Technical specifications can be customized according to project requirements.
Applications
Semi gantry cranes are widely used in industries where efficient lifting is required while making use of existing building structures.
Manufacturing Workshops
Handling machine parts, steel components, and production materials.
Equipment Maintenance Areas
Lifting motors, pumps, molds, and heavy equipment during maintenance operations.
Warehouses and Storage Facilities
Loading, unloading, and transporting materials efficiently.
Steel Fabrication Workshops
Moving steel structures and fabricated products throughout the production process.
Machinery Production Plants
Supporting assembly operations and material handling tasks.
Advantages of Semi Gantry Crane
Lower Construction Cost
Only one side requires a supporting leg and ground rail, reducing steel structure and civil construction costs.
Better Space Utilization
Allows operators to use existing workshop columns and runways, maximizing working space.
Flexible Installation
Suitable for workshops where installing a full gantry crane is not practical.
Reliable Performance
Designed for stable lifting and long-term industrial operation.
Customized Design
The crane can be designed according to lifting capacity, span, lifting height, and workshop layout.
Optional Configurations
• Electric Wire Rope Hoist
• Electric Chain Hoist
• Variable Frequency Drive (VFD)
• Wireless Remote Control
• Overload Protection System
• Limit Switch Protection
• Outdoor Rain Cover
• Anti-Collision Device
• Load Display System
Why Choose YiCheng Crane
✔ Professional Crane Manufacturer
✔ Customized Engineering Solutions
✔ Competitive Factory Pricing
✔ Reliable Product Quality
✔ Fast Delivery
✔ Technical Support
✔ Export Experience in Asia and Africa
How to Select the Right Semi Gantry Crane
To recommend the most suitable solution, please provide:
• Required lifting capacity
• Span of the crane
• Lifting height
• Workshop dimensions
• Indoor or outdoor application
• Power supply information
Our engineering team will design a crane solution according to your actual working conditions.
Request a Quote
Looking for a reliable Semi Gantry Crane manufacturer?
Contact YiCheng Crane today for customized lifting solutions, technical consultation, and competitive pricing. We will provide a professional quotation within 24 hours.
