Truss Gantry Cranes

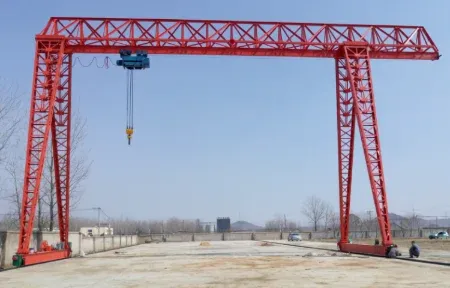

Truss Gantry Crane
Truss Gantry Cranes provide a lightweight, economical, and wind-resistant lifting solution for outdoor material handling applications such as construction sites, railway projects, and storage yards.
Specifications
- Type
- Truss Gantry Crane
- Girder
- Single Girder
- Use
- Material lifting and handling equipment
- Capacity & Span
- Customized
Truss Gantry Crane
Lightweight and Cost-Effective Lifting Solution for Outdoor Applications
Truss Gantry Cranes are widely used for outdoor material handling in construction sites, railway projects, precast yards, steel storage areas, and industrial workshops. Compared with box girder gantry cranes, the truss structure significantly reduces the crane's self-weight while maintaining reliable lifting performance.
The open truss design provides excellent wind resistance, making it particularly suitable for outdoor environments where strong winds are common. In addition, the reduced steel consumption helps lower manufacturing costs, making truss gantry cranes a cost-effective choice for many industrial projects.
YiCheng Crane supplies customized truss gantry cranes with capacities ranging from 1 ton to 50 tons, designed according to different lifting requirements and working conditions.
Main Features
• Lightweight truss structure
• Lower manufacturing cost
• Excellent wind resistance
• Reduced dead weight
• Easy transportation and installation
• Suitable for outdoor operation
• Reliable and stable lifting performance
• Customized span and lifting height available
Technical Specifications
Item | Specification |
|---|---|
Lifting Capacity | 1 Ton – 50 Ton |
Span | 10 m – 35 m |
Lifting Height | 6 m – 20 m |
Working Duty | A3 – A5 |
Lifting Speed | Customized |
Traveling Speed | Customized |
Power Supply | 380V / 415V / 50Hz / 3 Phase |
Control Method | Pendant Control / Wireless Remote Control / Cabin Control |
Technical specifications can be customized according to project requirements.
Applications
Truss gantry cranes are widely used in outdoor lifting environments where economic investment and wind resistance are important.
Construction Sites
Handling steel structures, construction materials, and prefabricated components.
Railway Projects
Lifting rails, sleepers, and construction equipment during railway construction and maintenance.
Precast Concrete Yards
Transporting molds, concrete beams, and precast products.
Steel Storage Yards
Loading and unloading steel pipes, steel plates, and structural steel materials.
Industrial Outdoor Areas
Material handling in open storage facilities and production yards.
Advantages of Truss Gantry Crane
Cost-Effective Investment
The truss structure uses less steel material, reducing overall manufacturing costs compared with box girder gantry cranes.
Better Wind Resistance
The open-frame design allows wind to pass through the structure, reducing wind pressure during outdoor operation.
Lightweight Structure
Lower self-weight reduces wheel loads and installation requirements.
Easy Transportation
The truss components are easier to transport and assemble, especially for remote project sites.
Flexible Customization
Capacity, span, lifting height, and control systems can be customized according to customer requirements.
Optional Configurations
• Electric Wire Rope Hoist
• Winch Trolley
• Variable Frequency Drive (VFD)
• Wireless Remote Control
• Cabin Control
• Overload Protection System
• Wind Monitoring Device
• Rail Clamp Device
• Outdoor Rain Protection
• Load Display System
Why Choose YiCheng Crane
✔ Professional Gantry Crane Manufacturer
✔ Customized Engineering Design
✔ Competitive Factory Price
✔ Reliable Product Quality
✔ Fast Delivery
✔ Technical Support
✔ Export Experience in Asia and Africa
How to Select the Right Truss Gantry Crane
To provide the most suitable solution, please send us:
• Required lifting capacity
• Span of the crane
• Lifting height
• Outdoor working conditions
• Material to be handled
• Power supply information
Our engineers will recommend the most economical and efficient crane configuration for your project.
Request a Quote
Looking for a reliable Truss Gantry Crane manufacturer?
Contact YiCheng Crane today for customized lifting solutions, engineering consultation, and competitive pricing. Our team will provide a professional quotation within 24 hours.
