Box Girder Overhead Crane vs I Beam Crane: How Low Headroom Design Reduces Factory Cost
Learn why box girder overhead cranes are widely used for low headroom workshops. Compare box girder and I beam cranes, advantages, costs, and how to choose the right crane design.
Box Girder Overhead Crane: Why Low Headroom Design Can Reduce Factory Construction Cost
When purchasing an overhead crane, many customers hear manufacturers mention box girder design and low headroom design.
But what exactly is a box girder crane?
Does a box girder structure really save money?
Is it always better than a traditional I beam crane?
This article explains the differences between box girder and I beam crane structures and helps you choose the right solution for your workshop.
What Is a Box Girder Overhead Crane?

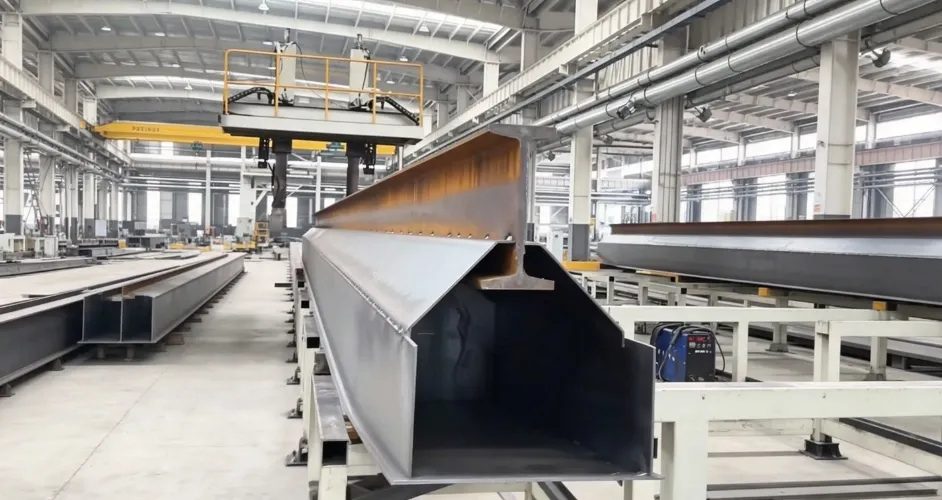

A box girder overhead crane uses a closed rectangular beam structure made by welding steel plates together.
Looking from the side, the main girder appears like a rectangular box, which is why it is called a box girder.
Compared with traditional I beam structures, the box girder has a more compact cross-section and higher structural rigidity.
Modern crane manufacturers commonly use box girder structures for applications requiring:
- Limited workshop height
- Higher lifting height
- Longer span
- Better stability
- Heavy-duty operation
Research on overhead crane girder optimization also shows that box-type girder structures are widely studied for improving strength, stability and weight optimization.
Box Girder Crane vs I Beam Crane: What Is The Difference?
1. Main Girder Structure
I Beam Crane
Traditional I beam cranes use an I-shaped steel profile.
The cross-section looks like the letter "I".
Advantages:
- Lower manufacturing cost
- Simple structure
- Easy maintenance
- Suitable for standard workshops
Box Girder Crane
Box girder cranes use welded steel plates to form a closed structure.
Advantages:
- Higher torsional resistance
- Better stability
- Suitable for longer spans
- Better space utilization
2. Workshop Height Requirement
This is one of the biggest advantages of low headroom box girder cranes.
For factories with limited building height, every centimeter of lifting space matters.
A traditional crane requires enough space for:
- Main girder height
- Hoist installation space
- Safety clearance
A low headroom design integrates the hoist and girder structure more efficiently, allowing the hook to reach higher positions.
For example:
A factory originally planned to build a 10-meter-high workshop.
By selecting a low headroom crane design, the required building height may be reduced, which can lower:
- Steel structure cost
- Wall material cost
- Construction cost
- Long-term maintenance cost
Does Box Girder Crane Mean The Manufacturer Uses Less Steel?
No.
This is a common misunderstanding.
Some customers think:
"Box girder looks smaller, so maybe the manufacturer saves material."

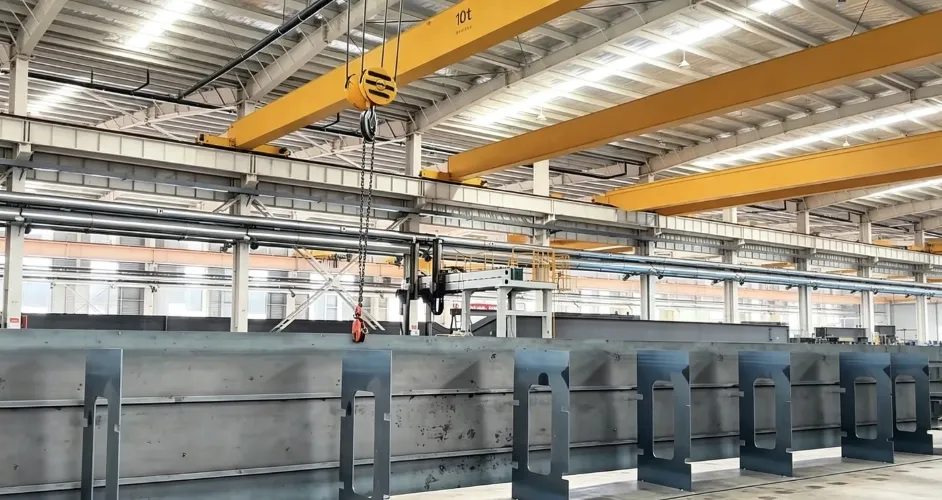

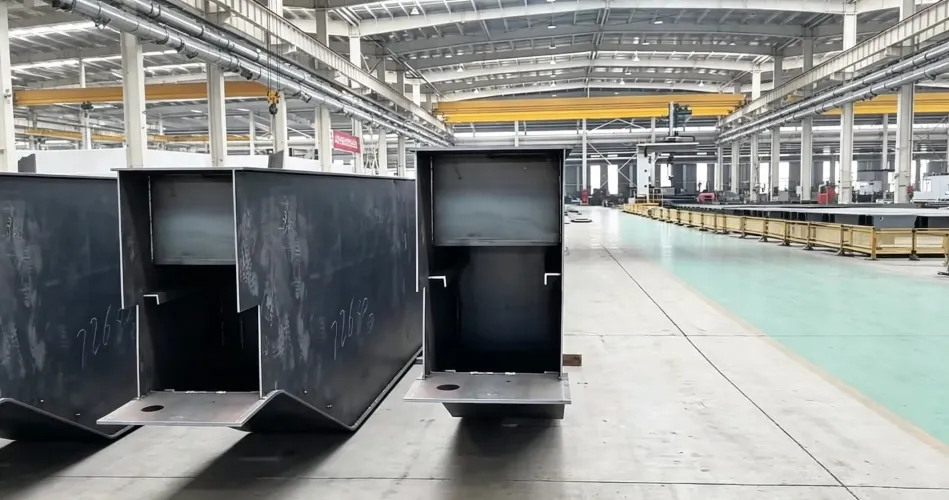

Actually, box girder requires steel plates on four sides and internal reinforcement design.
The purpose is not simply reducing material.
The purpose is:
- Improving structural strength
- Increasing stability
- Reducing unnecessary height
- Improving lifting space utilization
A properly designed box girder crane is not a cost-cutting design.
Advantages of Low Headroom Box Girder Crane
1. Higher Effective Lifting Height
For the same factory height, a low headroom crane can provide higher hook lifting height.
This is especially useful for:
- Machinery workshops
- Steel fabrication plants
- Warehouses
- Maintenance areas
2. Lower Factory Construction Cost
If a factory needs less height, customers can potentially save money on:
- Steel columns
- Roof structures
- Building materials
However, the actual savings depend on the complete building design.
The crane should be selected together with the workshop structure, not separately.
3. Better Stability
Because of its closed structure, box girder design provides better resistance against:
- Twisting
- Deflection
- Load impact
This makes it suitable for applications requiring stable operation.
Is Box Girder Crane Always Better?
Not necessarily.
A box girder crane is not the best choice for every customer.
Choose Box Girder Crane When:
✔ Workshop height is limited
✔ You need maximum lifting height
✔ Span is relatively large
✔ Crane works frequently
✔ Stability is important
Choose Traditional I Beam Crane When:
✔ Factory height is enough
✔ Budget is limited
✔ Lifting requirements are normal
✔ Working frequency is low
Because box girder cranes usually require more manufacturing processes, the investment can be higher.
In many projects, the price difference may be around 20% depending on specifications and design requirements.
How To Choose Between Box Girder Crane And Traditional Crane?
Before purchasing, consider these questions:
1. What is your workshop height?
If the building clearance is limited, low headroom design may provide more value.
2. What is the lifting frequency?
For daily heavy-duty operation, stability becomes more important.
3. What is your budget?
If construction height is not a problem, a standard crane may offer better cost performance.
4. What is the future expansion plan?
A crane should match not only today's needs but also future production requirements.
FAQ
1. What is a box girder overhead crane?
A box girder overhead crane uses a closed rectangular steel structure as the main beam. It provides higher rigidity and better stability compared with traditional I beam structures.
2. Is a box girder crane stronger than an I beam crane?
Generally, box girder structures provide better torsional stiffness and stability, especially for larger spans and heavier applications.
3. Does a low headroom crane reduce factory construction cost?
It can reduce construction requirements when lower building height is possible. The actual savings depend on the complete factory design.
4. Is box girder crane more expensive?
Yes. Due to more complicated fabrication processes, box girder cranes usually cost more than standard I beam cranes.
5. Should small workshops choose box girder cranes?
Not always. If the workshop has enough height and normal lifting requirements, a standard overhead crane may provide better value.
